Import MIDI karaoke

Scroll Prev Top Next More

MIDI files are ideally suited for karaoke -- they do not contain vocals, and they can be easily found on the internet. And a lot of them contain synchronized lyrics. The most common file extension for MIDI Karaoke files is KAR, but many MID files also contain lyrics.



Karaoke Video Creator has Import MIDI Karaoke Wizard that will assist you in process of converting MIDI karaoke to video.



To start Import MIDI Karaoke Wizard click Import MIDI Karaoke Wizard toolbar button (toolbar importmidiwizard) or select Import MIDI Karaoke Wizard command from File menu.

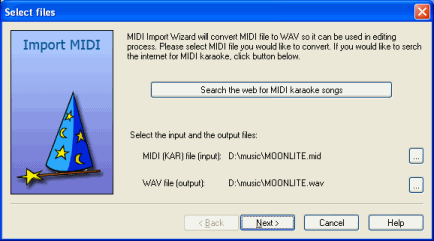

Select files



midiwizard files



You have to provide the input KAR file -- use [...] button next to input file to locate the file you would like to convert.



Karaoke Video Creator can help you to find MIDI Karaoke songs on the Internet -- click Search the web for MIDI karaoke songs button. You can learn more about searching for MIDI karaoke on the web in Search for MIDI karaoke on the web section.



Karaoke Video Creator need to record MIDI as WAV file. By default this file will be created in the same directory as the source KAR file. Use [...] next to output file to modify this directory if necessary.



When you have selected the source KAR file click Next button.

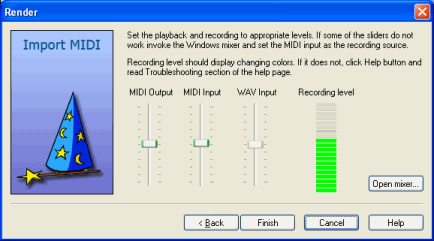

Rendering

Karaoke Video Creator need to record MIDI output as WAV input.



midiwizard render



Karaoke Video Creator will start MIDI file playback. If everything is configured correctly you should hear the music and see green and red bar moving in Recording level control.



Some sound cards do not expose appropriate inputs to Karaoke Video Creator. If sliders are grayed out and Recording level control does not display anything you need to adjust MIDI recording input manually. To do this click Open mixer button. Windows sound mixer will appear.

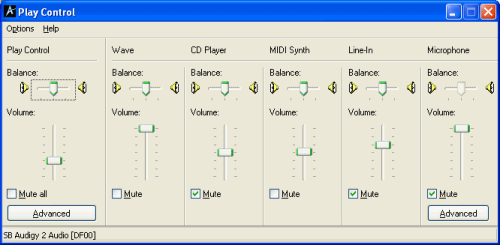

mixer play



First you will have to modify playback settings. Note that the title says Play Control. Make sure that MIDI is not muted.



Now it is time to modify recording settings. To do this select Properties command from Options menu.



mixer properties menu

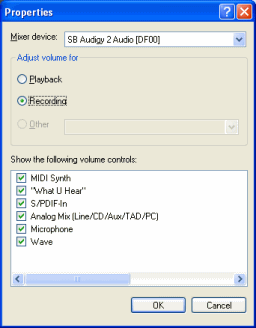

Properties dialog box will appear.



mixer properties



Under Adjust volume for change mode from Playback to Recording. Make sure that MIDI input is selected in Show the following volume controls list. Click OK to return to Recording Properties.

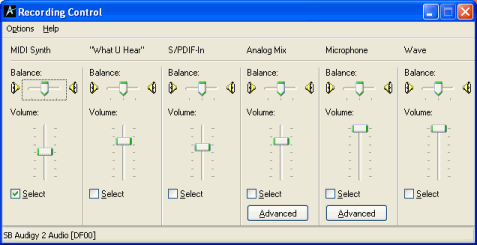

mixer recording



Now make sure that MIDI is selected as an active input and return to Karaoke Video Creator. Recording level control in Import MIDI Karaoke Wizard should become active.



Unfortunately some sound cards do not allow MIDI to WAV recording. If you are unable to enable MIDI recording you might try to connect the output of the sound card to the input with a piece of wire (usually two mini-jacks wire should do). It should not degrade the sound too much. You may also try to use software MIDI synthesizer. In case of doubt please contact Karaoke Video Creator support.



When everything is set up correctly click Finish.



Recording

Karaoke Video Creator now records MIDI to WAV file. It will take exactly the same time as needed to play the MIDI file.



Lyrics import

After importing audio it is time to import lyrics. Karaoke Video Creator will do this automatically. If there are any problems with import you will be displayed an appropriate message.



Done

You have successfully imported MIDI karaoke file. You have soundtrack and synchronized lyrics, so you may follow next steps as described in Create Karaoke Song tutorial.
